Economical system windows that can shorten the construction period without asbestos removal
Homepack single-window NAB177AP
Homepack single-window implements an efficiency rating (performance) that is superior to general single-window,
which has both advantages of double-windowing and high economic feasibility of single-window construction.
Through efficient design, the construction period can be shortened through eco-friendly construction as well as
eliminating various environmental pollution caused by asbestos removal.
- Construction is possible without removal of ceiling asbestos and curtain box.
- All interior spaces are pleasant and safe with a solid safety railing that covers all visibility.
- Homepack single-window achieve first-class air-tightness with triplex glass.
- With a systemized structure, Homepack single-window facility alone has the effect of expanding the interior space by more than 200mm.
- Exclusive to high-end houses and expandable apartments, high-end system single-window with excellent air-tightness and insulation performance as well as wide views and openness
- It is 177mm thick and can maximize the area of the interior space.
- The exterior is based on a durable ceramic coating, and the inner and outer colors are freely chosen.
- The best wind pressure/load-bearing performance was realized with pure domestic technology.
- It has semi-permanent durability with a simple rail structure.
Status of Excellent Products Registration by Public Procurement Service
Sliding System (Single Window) NAB177AP
It is possible to solve double window equipment burden by
installing single window
Superior price competitiveness : 50-60% compared to enterprise system windows
Highest performance competitiveness : Air-tightness of 0.0 and heat convection rate meets passive house criteria

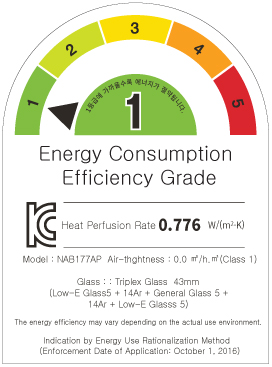

Realize class 1 of air-tightness with single window (NAB177AP Single window)
- It is an advanced single-window model that improves wind-resistant pressure performance, provides structural stability, and delivers double-window performance.
- This model is a single structure with PVC and aluminum composite material and is highly airtight, insulating, and durable.
- This model is optimized for schools, government offices, and apartments, luxury villas, houses, and commercial buildings.
|
Form and Devision |
 |
 |
 |
|||
|---|---|---|---|---|---|---|
| NAB177AP Sliding (Fixed+Sliding) |
NAB177AP Double Sash Sliding (Upper Fixation) |
NAB177AP Double Column Sliding (Upper Fixation) |
||||
| Class | 1 | 2 | 1 | 2 | 1 | 2 |
| Air Tightness(m3/m2·h) | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Heat Perfusion Rate(W/m2·K) | 0.776 | 1.328 | 0.776 | 1.328 | 0.776 | 1.328 |
| Glass | 43㎜(Double LOW-E, Argon Gas) 5le+14ar+5cl/Semi-Hardening +14ar+5le |
39㎜(Double LOW-E) 5le+12a+5cl/Semi-Hardening +12a+5le |
43㎜(Double LOW-E, Argon Gas) 5le+14ar+5cl/Semi-Hardening +14ar+5le |
39㎜(Double LOW-E) 5le+12a+5cl/Semi-Hardening +12a+5le |
43㎜(Double LOW-E, Argon Gas) 5le+14ar+5cl/Semi-Hardening +14ar+5le |
39㎜(Double LOW-E) 5le+12a+5cl/Semi-Hardening +12a+5le |
