Double Window
Details & Drawing
High-efficiency system window Homepack double window designed with complete air-tightness.
Double Window NAB233AP
The Homepack Double Window is a highly efficient window system that is easy for anyone to use with optimized functions, and boasts superior efficiency ratings (performance) such as high insulation and excellent soundproofing through perfect air-tightness.
It is not only maximizes the advantages of existing double windows, but also implements high insulation compared to double windows on the market. Home Pack is a high-efficiency green energy eco-friendly window that enables low-cost construction through the technology know-how of the Nabsystem.
- Homepack combines a sliding window of 100mm and an NDS system of 133mm to provide the highest level of air-tightness and insulation.
- Homepack double window is a high-insulation system window that is cheaper than conventional double window.
- It is a system window optimized for the rapidly changing climate environment with 100% Korean technology and production.
- At the customer's request, custom-made products can be customized for convenience such as sliding on both sides or one side.
- Homepack is leading the environmental protection with high-efficiency green energy products.
- The exterior can be applied in a variety of colors with aluminum.
- The exterior is based on a durable ceramic coating, and the interior and exterior colors are freely available.
- We realized the best wind pressure and load-bearing performance with 100% Korean technology.
- It has semi-permanent durability with a simple rail structure.
Status of Excellent Products Registration by Public Procurement Service
Sliding System (Double Window) NAB233AP
Maximize insulation performance with minimum glass specifications
High-efficiency system windows that maximize complete air-tightness
Superior price competitiveness: 50-60% compared to enterprise system windows

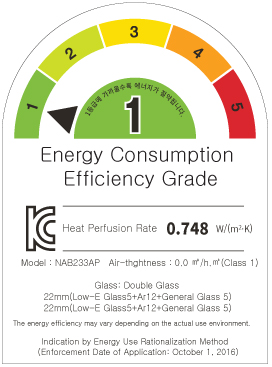

Highest performance competitiveness: Air-tightness of 0.0 and heat convection rate meets passive house criteria
Maximize insulation performance with minimum glass specifications (NAB233AP Single window)
- Homepack maximized energy efficiency with minimum glass specifications.
- A double-glazed structure with a combination of aluminum+PVC material provides high air-tightness, insulation, and economy.
- This model is optimized for schools, government offices, and apartments, luxury villas, houses, and commercial buildings.
|
Form and Devision |
 |
 |
 |
||||
|---|---|---|---|---|---|---|---|
| NAB233AP Sliding (Fixed+Sliding) |
NAB233AP Double Sash Sliding (Upper Fixation) |
NAB233AP Double Column Sliding (Upper Fixation) |
|||||
| Class | 1 | 2 | 1 | 2 | 1 | 2 | |
| Air Tightness(m3/m2·h) | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | |
| Heat Perfusion Rate(W/m2·K) | 0.748 | 1.211 | 0.748 | 1.211 | 0.748 | 1.211 | |
| Glass | Outside | 22㎜ (LOW-E, Argon Gas) 5cl+12ar+5cl |
22㎜ (LOW-E) 5le+12a+5cl |
22㎜ (LOW-E, Argon Gas) 5cl+12ar+5cl |
22㎜ (LOW-E) 5le+12a+5cl |
22㎜ (LOW-E, Argon Gas) 5cl+12ar+5cl |
22㎜ (LOW-E) 5le+12a+5cl |
| Inside | 22㎜ (LOW-E, Argon Gas) 5cl+12ar+5le |
22㎜ 5cl+12a+5cl |
22㎜ (LOW-E, Argon Gas) 5cl+12ar+5le |
22㎜ 5cl+12a+5cl |
22㎜ (LOW-E, Argon Gas) 5cl+12ar+5le |
22㎜ 5cl+12a+5cl |
|
